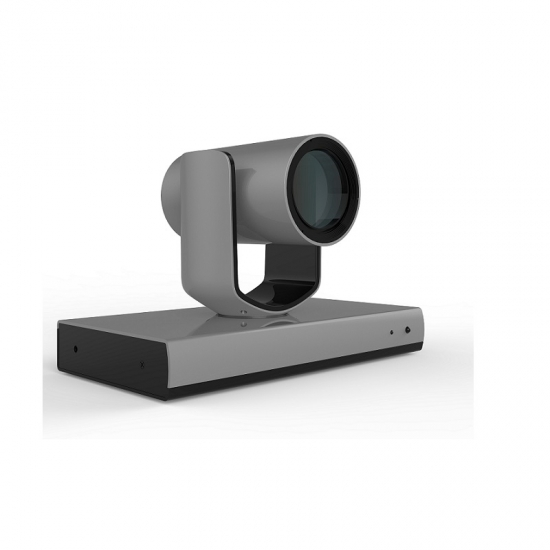

4K60fps Live Steaming 12X PTZ Video Camera for Church

AMC-G500 is a truly 4K60 12X PTZ camera, 1/2.8" CMOS, 8.46MP, truly 4K 12x lens, to output 4K60 sharp image.
It has smooth PTZ mechanical design, to make accurate pan,tilt, zoom movement, simultaneously output 4K UHD and Full HD resolution, ideal for professional live steaming application.

item no.:
AMC-G500(S/H)
payment:
T/T, Paypal, West Union
product origin:
China
color:
Sliver
shipping port:
Shenzhen
lead time：
5

contact now download

Description
Information
Downloads

Feature

- Wide 81° field of view
- USB2.0 with UVC and UAC protocols, up to 4K30 video output, and support POE
- Optional 3G-SDI or HD-BaseT video output
- Support RS-232 in, RS-232 out control interface and VISCA protocol
- 1 channel Line in
- Fast, accurate and smooth tracking
- High precision, smooth rotation, quiet PTZ

Model No.	AMC-G500(S/H)
Camera
Image Sensor	1/2.8" CMOS, 8.46MP
Lens	12X; f=3.4mm - 40.3mm; F1.8(Wide) - 3.6(Tele)
FOV	81° - 7.6°
Image	Auto focus/auto exposure/auto white balance
SNR	2D & 3D DNR,≥55dB
Video Output Format	4KP60/P50/P30/P25, 1080P60/P50/P30P/25, 720P60/P50
Image Compression	H.264/H.265/MJPEG
BLC/WDR	Support
PTZ
Pan Angle	-130° - +130°; 0.2° - 80°/s
Tilt Angle	-30° - +90°; 0.2° - 60°/s
Menu	Support
Preset Number	64
Video/Audio Interface
SDI(Optional)	1x3G-SDI, support 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50
HDMI	1xHDMI2.0; Video resolution: 4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
Audio Input	1 x line in, 3.5mm
HD-BaseT(Optional)	1xHDB - BaseT, support 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50
USB
USB Interface	1xUSB2.0
Video Format	MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 260P30/25
Interface
Network Interface	1x10M/100M/1000M, RJ45 POE(Optional)
Video Output Format	Max. 4KP60
Image Compression	H.264/H.265/MJPEG
Audio Compression	AAC
Network Protocol	RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP
Dual Stream	Main/Sub
General
Control Protocol	VISCA
Addresses	1-6
Power	DC12V
Power Consumption	Below 18W
Working Environment	Temperature: 0°C - +40°C; Relative Humidity: 10%RH - 90%RH
Storage Environment	Temperature: -20°C - +60°C;Relative Humidity: 10%RH - 95%RH
Dimension	245mm x 145mm x 165mm
Weight	1.8kg
