4K Video Conference Group

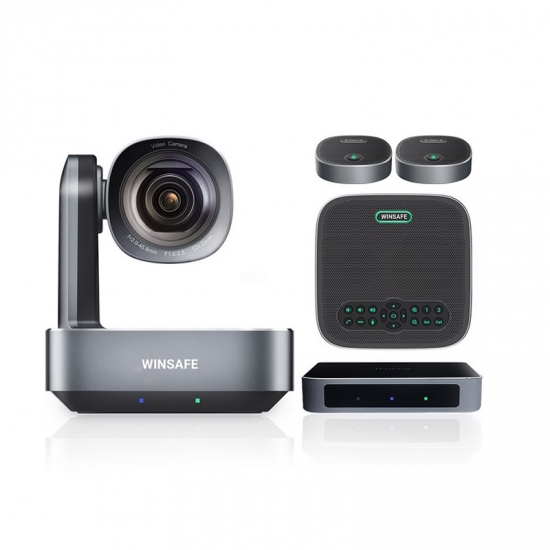

WINSAFE 4K Video Conference Group/UHV-VA6000 is ali-in-One video and audio conferencing system for middle and big meeting rooms, which contain 12X 4K HD PTZ Camera and 360° voice pickup speakerphone with 9 meters voice pick-up radius.

item no.:
UHV-VA6000
payment:
T/T
product origin:
China
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Feature

※ Complete audio/video conferencing group for medium to large rooms: HD video camera, speakerphone and hub
※ Compact and Sleek Design to fit in most scenarios
※ High end speakerphone, Plug & Play HD audio allows everyone around the conference table to hear and be heard clearly
※ Easy and good video conferencing: Launch video meetings with a plug & play USB connection to a laptop and choose a video conferencing software

※ High def video: HD 1080p video with autofocus, 12x zoom lens. 4K resolution makes sure you see every detail of the meeting room
※ Compatible with Mac and PC. System Requirements: Windows 7, 8 or 10, Mac OS X 10.7 or above

Application

Model No.	UHV-VA6000
Image Sensor	1/2.8" CMOS
Effective pixel	8.29MP
Lens	f = 3.9mm - 46.8mm
Apeture	F1.6-F2.8
Video Format	4K30, 1080P60/50/30/25, 720P60/50/30/25
Horizontal Angle	70.82°(W) - 6.48°(T)
Focus	Auto/Manual
Digital Noise Reduction	2D and 3D Noise Reduction
Exposure	Auto/Manual
Video Interfaces	HDMI, DP
Video Compression Format	H.264, H.265, MJPG, YUY2
Control Protocol	VISCA/Pelco-D/Pelco-P
Baud Rate	9600/4800/38400/2400
Pan/Tilt Rotation	>±175°,-90°～+90°
Pan Control Speed	0.1 - 80°/sec
Tilt Control Speed	0.1 - 60°/sec
Preset Number	255 presets by Pelco-D, 32 presets by Pelco-P, 7 presets by Visca(10 presets by remote controller)
Acoustic echo cancellation(AEC) of the speakerphone	＞65dB
Response of the speakerphone	135Hz-20Hz
Pickup Range of the speakerphone	9 meters
Interfaces of the hub	DP x 2, Power interface x 1, USB Type-C x 1
Cables of the hub	3m USB cable x 1, 5m DP cable x 2
Operation systems	Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux(Required to support UVC.) Compatible with Zoom, MS Teams, Skype and etc.
Dimension （W x H x D)	Camera: 171.6 x 192.6 x 171.6mm; Speakerphone: Φ 180mm37.4mm; Hub: 9898*20m
