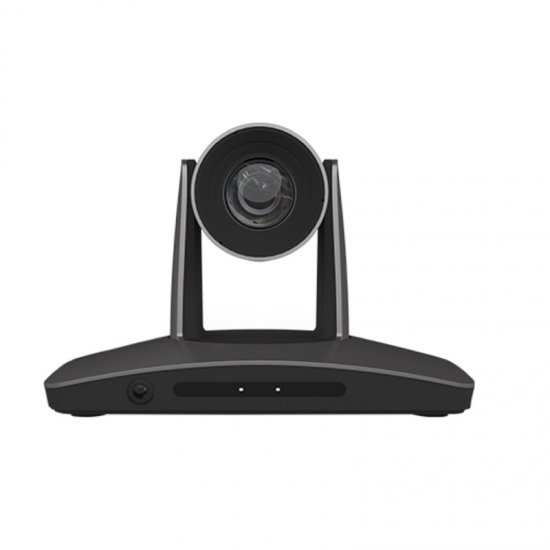

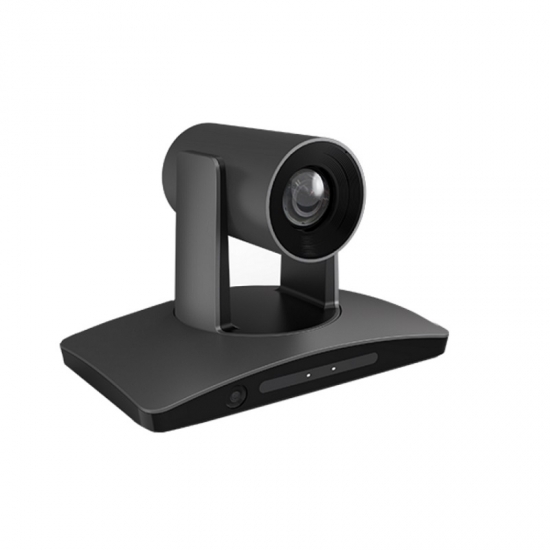

WINSAFE LTC2-A2001NV4 id Dual-cam 1080P Lecturer Tracking PTZ Camera, which built0in AI algorithm based on deep learning, rich tracking models such as auto framing, zone tracking, lock-n-track, group tracking etc. output clear video images and meet needs of various teaching scenes.

item no.:
LTC2-A2001NV4
payment:
T/T
product origin:
China
color:
Black
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Feature

※ Dual-cam design for tracking view and full view, max 1080P60 video resolution
※ Tracking cam: HD lens with 20x/12x otpical zoom, HFOV up to 72.5°
※ Full-view cam for detection and recognition of all people in the scene
※ Built-in advanced AI algorithm based on deep learning, rich tracking modes such as auto framing, zone tracking, lock-n-track, group tracking etc.
※ Simnultaneous outputs over HDMI, USB3.0, Ethernet and 3G-SDI, support POE
※ Web UI for easy setting and control

HD Lens

High-Definition Lens Gives You a Higher-Definition Vision

High Definition Images

The camera gives you clear viion of the scenarios at 1080P resolution

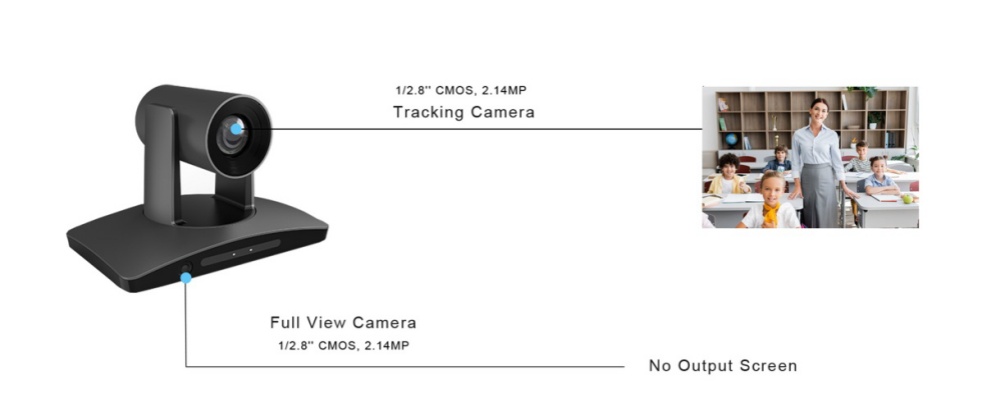

Dual Lens

1/2.8" CMOS,2.14MP Tracking Camera, 1/2.8" CMOS, 2.14 Full View Camera

Interface

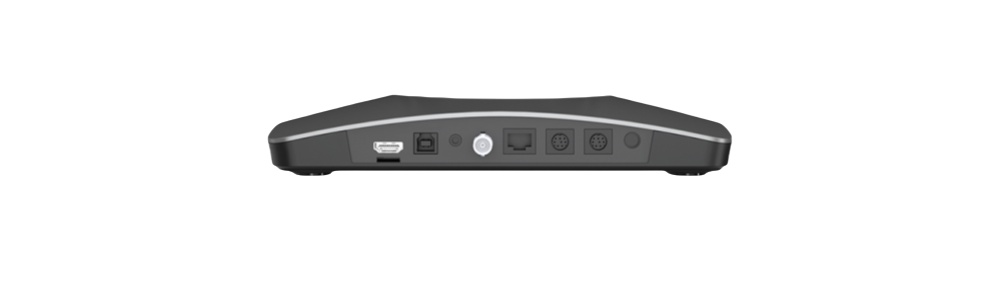

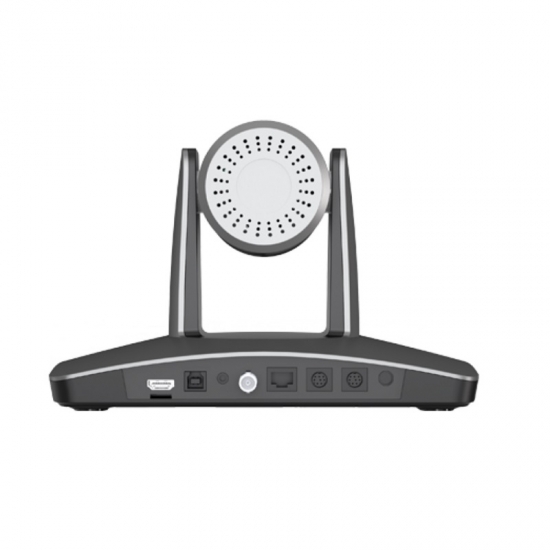

Support HDMI, 3G-SDI, LAN, USB3.0, LINE IN.

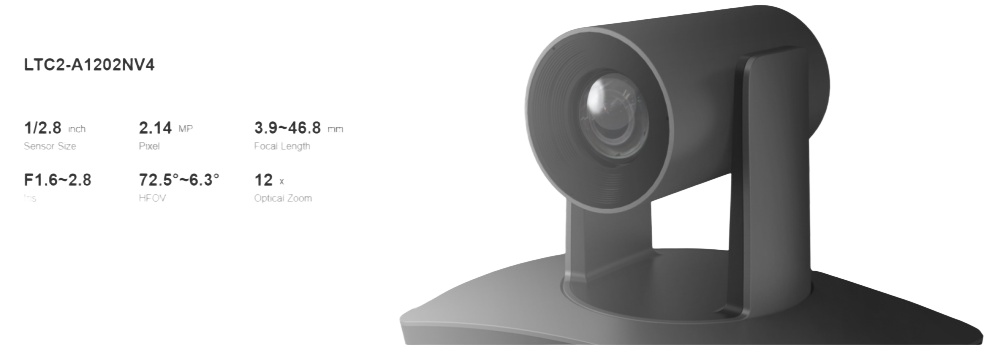

Model No.	LTC2-(N)A2001NV4	LTC2-(N)A1202NV4
Tracking Cam
Image Sensor	1/2.8" CMOS, 2.14MP	1/2.8" CMOS, 2.14MP
Optical Zoom	20x	12x
Digital Zoom	8x
Lens	f = 4.7 - 94.0mm, F1.6 - F3.5	f = 3.9 - 46.8mm, F1.6 - F2.8
HFOV	59.5° - 2.9°	72.5° - 6.3°
Focus	Auto, Manual, PTZ Trigger, One Push Trigger
White Balance	Auto, One Push, Manual, Static Color Temperature
Exposure	Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Shutter Speed	1/60 - 1/10,000s
Gain	Auto, Manual
SNR	≥50dB
SN Ratio	Above 50dB
Full View Camera
Image Sensor	1/2.8" CMOS, 2.14MP
White Balance	Auto, One Push, Manual, Static Color Temperature
Exposure	Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Shutter Speed	1/60 - 1/10,000s
Gain	Auto, Manual
SNR	≥50dB
SN Ratio	Above 50dB
Full View Camera
Image Sensor	1/2.8" CMOS, 2.14MP
White Balance	Auto
Exposure	Auto
Focal Length	Manual focus, 2.4mm
Viewing Angle	Horizontal: 88°; Vertical: 54°
PTZ
Pan	-170 ° - +170°; 0.1° - 120°/s
Tilt	-30° - +90°; 0.1° - 90°/s
Preset Number	64
Image Flip	Support
Interface
HDMI	1xHDMI; Support 1080P60/P59.94/P50/P30/P29.97/P25, 720P60/P59.94/P50
Network	RJ45(10m/100m), optional POE 1. Up to 1080P60; 2. Image Compresion: H.264/H.265; 3. Protocol: ONVIF/RTSP/RTMP; 4.Audio Compression: AAC; 5. Support multi streaming
USB3.0	1. Support UVC1.1; 2. Image compression: H.264/H.265/MJPEG Support 1080P30/P25, 720P30/P25, 360P30/P25 3. UAC audio compression support PCM
3G-SDI	1 x 3G-SDI, Support 1080P60/P50/P30/P25, 720P60/P50
Audio input	1 x LINE IN, 3.5mm audio interface
Control Interface	1 x RS232 IN, 1 x RS232 OUT
Local Storage	Built-in SD card slot
TF Card	Max 64G
General
Power Supply	DC12V
Power Consumption	Below 15W
Control Protocol	VISCA, PELCO-P, PELCO-D
Operating Environment	Temperature: 0°C - +40°C, Relative Humidity: 10%RH - 90%RH
Storage Environment	Temperature: -20°C - +60°C, Relative Humidity: 10%RH - 95%RH
Dimension(LxWxH)	243mm x 157mm x 163mm
Weight	<2kg
